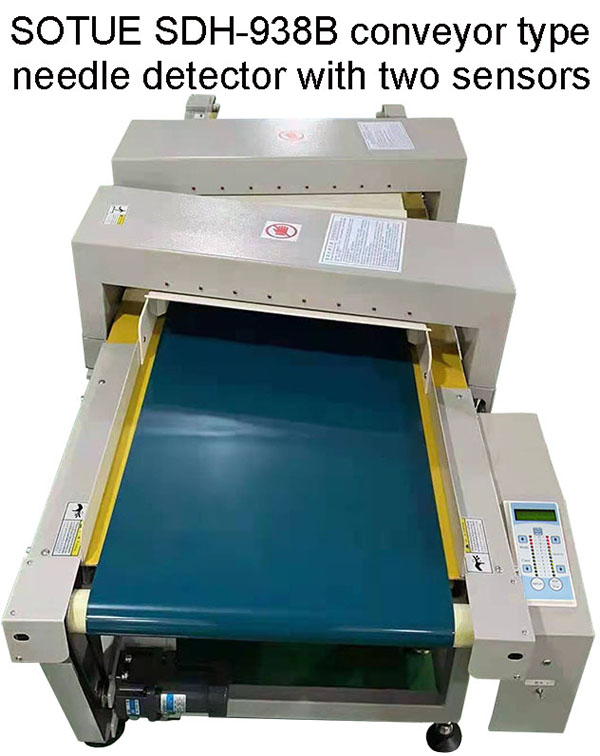

SOTUE SDH-938B conveyor type needle detector with two sensors
SOTUE SDH-938B conveyor type needle detector with two sensors is widely used to inspect high elastic cotton clothing, non-woven products, plastic plate, paper, toys, shoes, hats, sewing products, food products, pharmaceutical products, chemical products, rubber products and other detection items, it can be installed directly in a production line.
SDH-938B detectors have been widely used in some foreign-funded factories set up in China by some companies of Japan, Taiwan, Hong Kong, USA and European countries, and they have been used all the time.
SDH-938B needle detectors have been also exported to Turkey, India, Brazil, South Africa, Italy, Japan, Malaysia, Vietnam, Mexico, Thailand & Indonesia etc. to local customers' uses by distributors. Its sensitivity meets customs requirements of the importing countries. We have provided its OEM production for our some customers in Europe, USA & Japan for more than 10 years.
( OPTIONAL: Tunnel detection width: 600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1300mm, 1500mm ).
Total dimension: 2355 mm (L) x 1054 mm (W) x 903 mm (H). Tunnel inspection width: 600 mm.
Tunnel detection height Tunnel detection Sensitivity
300mm Feφ≥2.0 ~ 2.5mm
350mm Feφ≥2.5 ~ 3.0 mm
Detection adjustment: automatical adjustment. Power supply: AC 110V ~ 220V (±10%), 50 ~ 60Hz. Weight: Appr. 220kg.
Rated output: Appr. 200W. Alarm method: Buzzer and Light (Optional: Red and green column type alarm speaker & light).
1. Vertical and Horizontal. Its LCD control panel gives you a good operation environment. Real time level display. An automatic counter function and automatic checking function.
2. It uses American microcomputer chip and genuine sensor components manufactured by USA company and a durable industrial conveyor belt, uses high sensitivity of 12-level adjustment, its detection force does not decay and is persistent and durable.
3. When a sensor detect a broken needle or a iron piece, an alarm signal can be given out. It is designed for universal AC power supply (full range).
4. When the broken needle or other magnetic metal is found, the machine gives out an alarm, in the same time, the conveyor belt stops & return automatically.If the alarm is given out normally, the probe will give out a light to indicate a object place where the broken needle or other magnetic metal is.
5. Use Twelve level sensitivity adjustment of detection force, its work is more stable. Optional function: printing reports with a printer.
6. SDH-938B series double sensor type detectors adopt the advanced technology and know-how of high sensitivity, they have an intelligentized location show and counting system, and have very strong anti-interference capability, they can suit more complex environment use. Metal shell made by aluminium alloy.
1. Conform to EN 60950-1: 2006+A11: 2009 electrical product safety international standard.
2. Radiation conforms to EN61000-6-3:2007+A1:2011 product emission international standard.
3. Conform to EN61000-3-3:2013 product safety international standard.
4. European CE and EMC international safety standard certificates.
STT CNM-33 hand-held inspecting needle detector, high sensitive hand-held metal detector
STT CNM-33 hand-held inspecting needle device can inspect out the goods that include iron, ferrous metal and magnetic metal. It is suitable for the safe inspection uses of food industry, textile industry, toy industry, medicine products and so on.
Such as: suitable for knitting, clothing, shoes, socks, medicine, food, chemical raw materials,ferromagnetic material inspection, also for the human body security inspection & for the inspection of livestock, wounds, wood, walls, tables, and other objects that contains metals, also for customs, frontier defense, and other security checks. It serves for examination of persons, hand-held luggage, mail and parcel consignments, able to locate a needle or minimum metal at close distance, to locate weapons, parts of weapons, ammunition, explosives in metal covers, etc..
Dimension: 145 mm (L) x 61 mm (W) x 46 mm (H).
Highest detecting sensitivity: Iron ball diameter Feφ ≥ 0.3 mm, SUS 304φ ≥ 1.0 mm.
Power supply: DC 9V - 6F22. Net weight: 200 g.
Working environment temperature: -15℃ ~ 45℃.
High sensitivity to detect a very small broken needle.
High sensitivity: such as Iron ball diameter Feφ 1.2 mm, its inspecting height can be to 10 mm up.
For steel needle of diameter 0.7 mm x length 20 mm size, its inspecting height can be to 50 mm up.
For a long time usage, it will not get hot. When it is shortage of using voltage, its speaker will give out a sound automatically. It need to install a new battery.
1. Conform to EN 60950-1:2006+A11:2009 international product safety standard. Conform to EN 55011:2009 and EN 61326-1:2006 international product safety standards.
2. Conform to EN61000-3-2:2006+A2:2009 & EN61000-3-3:2008 international product safety standards.
3. European CE and EMC international security standard certificates.
