| Conveyor type pharmaceuticals & food metal detector, conveyor type needle detector |
|
About more kinds of pharmaceuticals and food metal detectors, please visit: http://www.topteches.net/en/html/html_135.html

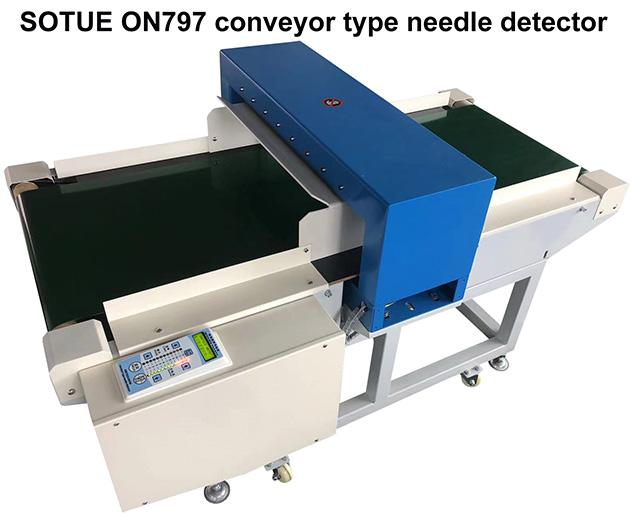

SOTUE ON797 conveyor type needle detector, conveyor type pharmaceuticals and food metal detector
Application:
ON797 detector is widely used to inspect the safety of pharmaceuticals, foods, toys, non-woven products, elastic cotton clothing, sewing products, chemical products and rubber products, it can be installed directly on the production line to use.
ON797 detector can professionally detect medicines and foods packaged with aluminum foil, it can detect whether pharmaceuticals & foods packaged with aluminum foil contain a broken needle or iron impurity or ferrous metal or various metals containing magnetism such as Copper, stainless steel etc.
ON797 detectors were purchased and used by some pharmaceutical & food companies in Japan, South Korea, USA & European countries. ON797 detectors have been exported to Turkey, Japan, UK, USA, Australia, Italy, France, Spain, Brazil, South Africa, Mexico and Indonesia to local customers to uses.
Technical data:
Detection tunnel width: 480 mm. Detection tunnel height: 120 mm. Detection tunnel sensitivity: Fe φ 0.8~1.0 mm.
Optional: detection tunnel width: 600 mm, 700 mm, 800 mm, 1000 mm, 1100 mm, 1200 mm. Corresponding selection as follows:
Detection tunnel height Detection tunnel sensitivity
100mm Feφ≥0.8mm
120mm Feφ≥1.0mm
150mm Feφ≥1.2mm
200mm Feφ≥1.5mm
250mm Feφ≥2.0mm
300mm Feφ≥2.5mm
350mm Feφ≥3.0mm
Power supply: 110 V ~ 220 V (± 10%), 50 / 60Hz. Dimension: 1680 mm (L) × 830 mm (W) × 900 mm (H). Weight: about 120 kg. Rated output: about 140 W.
Feature:
ON797 detector adopts the advanced digital signal processing technology, it has strong anti-interference capability and suits more complex environment use.
1. LCD control panel gives you good operation environment. Real time level show. Optional: Automatic counter function.
2. The conveyor belt is made from nonpoisonous material. When it detects a broken needle of iron or ferrous metal or iron impurities and various metals containing magnetism, its Alarm can be given out. Designed for universal AC power supply (full range).
3. When the broken needle or other metal is found, the machine gives out an alarm, at the same time, the conveyor belt stops or return automatically.
Technical standards:
1. Conform to EN 60950-1: 2006+A11: 2009 international electrical product safety standard. Radiation conforms to EN61000-6-3:2007 international product emission standard. 2. UKCA international safety standard certificates. European CE & EMC international security standard certificates. |
|
