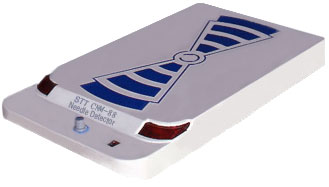

CNM-88 table top type needle detector, needle detector |
STT CNM-88 platform type inspection needle detector
Application: STT CNM-88 table top type needle detector is widely used to detect toys, shoes, hats, non-woven products, high elastic cotton clothing, paper, plastic plate and other items.
Features: 1. Use high sensitive technology. Ten level sensitivity adjustment, magnetic induction.
2. Alarm: sound & two automatic alarm signal lights so that you can find the broken needle easily. Anti-static cover, SMD technology. Touch-button integrated control panel.
3. Detection distance: iron pin diameter 0.7 x 25 mm (L), its detection distance is about 8 cm height on the detector surface. 8 LED detection location display is easy to locate the place of the broken steel needle, (Optional).
Technical data: 1. Power supply: AC 110~240V, 45~65Hz , desingned for universal AC power supply (full range). Rated output: Appr. 10W. Weight: 11Kg.
2. Detection sensitivity: Feφ ≥ 0.8~1.0 mm. Volume: 690 mm (L) x 375 mm (W) x 83 mm (H). Detection surface size: 130 mm (W) x 490 mm (L).
Technical standards: 1. Conform to EN 60950-1: 2006+A11: 2009 electrical product safety international standard. Anti-jamming conforms to EN 50082-1 international standard.
2. Conform to EN 61000-3-2:2006+A2:2009 and EN 61000-3-3: 2008 product safety international standards. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.
3. UKCA international safety standard certificates. European CE & EMC international security standard certificates. |
|
