Application:

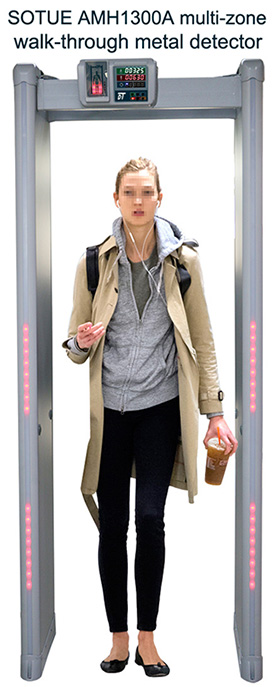

SOTUE AMH1300A 33-zone walk-through metal detector is an advanced high security multi-zone simultaneous alarm walk-through metal detector in the world, when people pass through it, it can detect any small mass metal, by manual adjust its sensitivity for high sensitivity or low sensitivity to detect a small metal or a big metal. It is used widely in loss prevention and security inspection, used widely in airport, court, prison, customhouse, big bus stations, train stations, factory, exhibition site, gym place, amusement place, and so on. It inspects persons, hand-held parcels and luggages, and can locate a small metal, IED-device, weapons, ammunitions, parts of weapons, bombs, etc..

Feature:
1. Complete security detection, multi-zone alarm displays, high discrimination, high immunity to external interferences, high detection speed, high reliability with double alert. 33 partition alarm zones from head to toe are displayed in one or two sides of this door and on its top operation panel. Its Security level: overall gate sensitivity adjustment for 0~99 grades, each zone sensitivity can also be individually adjusted for 0 ~ 399 grades. Highly visible double alarm displays: Provides the location of weapons in transit. it displays an accurate detection location: LED light-emitting lights display the location of metal objects. Through the control panel to operate it, its password-protected setting can be changed. Optional: This detector have 72 use occasion programs for your options to convenient uses for you.

2. Automatic calculation passer number & alarm number function, LED display digits. Induction to all metals, have an intelligentized recognition processing functions. Automatic checking and recovery function.

When carrying any small mass metal passes through it and it detects this metal, its alarm will be given out, you can get an accurate warning location. Objective location alarm lights are displayed in one or two sides of this door and on its top operation panel. Adjustment sensitivity by hand.

Technical data:
Power supply: 110V ~ 220V (±10%), 50 / 60Hz.  Power: 12W.  Weight: about 50 kgs. Automatical adjustment.
Working environment: -35℃ ~ 70℃. 33 detection zones.
Overall exterior gate dimension: 2200 mm (H) x 880 mm (W) x 482 mm (depth).
Dimension of gate passageway interior: 2000 mm (H) x 700 mm (W) x 482 mm (depth).
Optional:
Overall exterior gate dimension: 2200 mm (H) x 930 mm (W) x 482 mm (depth).
Dimension of gate passageway interior: 2000 mm (H) x 750 mm (W) x 482 mm (depth).
33 detection zones.
Optional 18 detection zones. Optional: communication port RS232 or RS485.
Optional: UPS battery for 8 / 16 / 24 / 48 hour working time.

Technical standards:
1. Conform to EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 product safety international standard. Conform to EN 55011:2009+A1:2010 and EN 61326-1:2013 product safety international standards. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards. 2. Conform to EN 61000-6-1:2007 product immunity international standard and radiation conforms to EN 61000-6-3:2007 +A1:2011+AC:2012 product emission international standard. Be harmless to pregnant women and magnetic recording materials. 3. Conform to U.S.A. FAA 3-gun testing standards and NILECJ-0601-00 safety standards. 4. European CE and EMC international security standard certificates, conform to ECAC international Security standard. Conform to U.S.A. Transportation Security Administration (TSA) standard.

          SIIE AMH1300 33-zone high security multi-zone simultaneous alarm walk-through metal detector

Application:
SIIE AMH1300 33-zone high security walk-through metal detector can pinpoint any small mass metal & weapon locations on the left, center & right side of a human body. It is used widely in security inspection and loss prevention, used widely in airport, court, prison, customhouse, gym place, exhibition site, factory, amusement place, and so on. It inspects persons, hand-held luggages & parcels, can locate a small metal, IED-device, weapons, ammunitions, parts of weapons, bombs, etc..

Feature:
1. 33 independent detection zones to precisely identify multiple target locations from head to toe on the left, center and right side of the body. Multi-dimensional scan detection. Infrared counter, automatic calculating passer number and alarm number functions, it displays number separately for four digits. Digital signal processing & self-diagnostic function. Optional: a backup battery.
2. Multi-dimensional coil design:
Advanced broadband detection technology provides superior target analysis, ferrous & non-ferrous weapon detection, higher person flow and high discrimination. User's friendly LCD control panel view.
3. Temperproof settings: top LCD Display operation, alarm lights display, LED bar graphs and control touch keys plus all wiring, connections and electronics are integrated into a single lockable overhead compartment which eliminates exposure of wires and internal control box.
4. Easy to be assembled:
Its modular design is convenient for a quick and simple assembly, strong lightweight design, easy assembly, assembled with its four sub-assemblies using only eight screws and three internal electrical connections.
5. Passcode protection:
Multi level authorized code for an administrator or a supervisor to adjust it and view the data in order to keep its security only.
6. Programs and sensitivity:
Thirty-three independent programs, Complete & automatic self-diagnostic program; 100 or 200-grade sensitivity adjustment. it can offer extra high sensitivity to detect a small metal object. Objective location alarm lights are displayed in two sides of this door.
7. Strong Interference Suppression:
High environmental interference rejection capability, advanced digital filtering technology and adjustable operating frequencies eliminate the outside potential Interference influence.

8. Red " palm " shapes are on the two sides of its back, it means when a person walks through it, its alarm is happening and this person is being inspected because of security problem and the illegal metal found on this body, at this time the next following person stops for few seconds, then walks through it for inspection.
9. Green " human walking " shapes are under red " palm " shapes on the two sides of its back, it means when green " human walking " shapes show the green colour, a person can walk through it for inspection.
