SWT833D medical walk-through body fever temperature detector with a whole body disinfectant sprayer, TECOS AWT99P medical walk-through automatic scan Omicron virus, JN.1 virus, COVID-19 virus, Monkeypox Virus, flu & various virus human fever temperature detector (medical body thermometer gate) with camera, as follows:

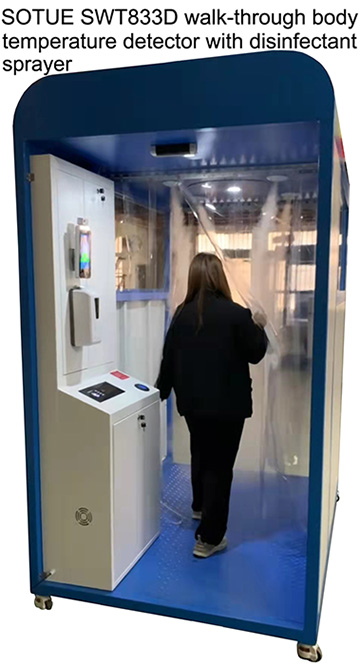

SOTUE SWT833D walk-through body temperature detector with a whole body disinfectant sprayer
It can effectively and accurately detect human body temperature, its small type disinfectant sprayer can automatically sense & spray hands for disinfection with disinfectant, finally a person enters a big atomization disinfection area. The atomization is completed within the set time, and the person exits the disinfectant atomization channel to complete the temperature measurement atomization disinfection, thereby let it eliminate the viruses, effectively prevent the infection and transmission of new viruses, and ensure a good and safe work environment.
Application:
SWT833D medical automatic scan human fever temperature detectors with whole body disinfectant sprayers have been widely used in airports, schools, hotels, courts, prisons, hospitals, churches, amusement places, embassies, factories, banks etc. to detect human fevers of infecting COVID-19 Virus, flu, Monkeypox virus, Delta virus, Omicron virus, JN.1 virus and other various viruses and disinfect people.
Technical data:
Door size: 2,000 mm (L) x 1,300 mm (W) x 2,352 mm (H).
Temperature measurement channel size: 652 mm (L) x 1,200 mm (W) x 1,950 mm (H)
Atomization channel size: 1,200 mm (L) x 1,200 mm (W) x 1,950 mm (H).
Power supply: AC 110 V ~ 220 V (± 10%).
Power: 0.5 KW.
Total weight: about 200 kg.
Induction spray disinfection:
Spray duration setting: 5~20 seconds / person, stop spray.
Its continuous spray time can be set.
Temperature measurement function:
Automatic detection temperature and abnormal alarm (optional mask recognition).
Detection distance: 30 ~ 50 cm, detection accuracy: ± 0.3 ~ 0.5 °C.
User capacity: 10,000 pcs.
Record capacity: 10,000 pcs.
Working temperature: 0 °C ~ 45 °C.
Working humidity: 20% RH ~ 80% RH.
Voice: Voice broadcasting
Full scene recognition with built-in supplementary light function.
Atomization system:
Adopting ultrasonic atomization system, quiet and no noise.
The diameter of the mist particles output by the entire machine is 1-10 u.
The relative humidity can reach 99%.
Disinfectant capacity: 50 L ~ 60 L.
Mist outlet: 75 mm.
Technical standards:
Conform to European Medical Device Directive (MDD) 93/42/EEC and EMC Directive 2014/30/EU international safety standards.
Have European CE & EMC international Medical Device standard certificates.
TECOS AWT99P walk-through body fever temperature detector (medical body thermometer) with a camera
It can detect body temperatures of all patients with fever such as detecting fever temperatures of Omicron virus patients, COVID-19 Coronavirus patients, Monkeypox & Delta virus patients, Dengue fever patients, SARS & MERS virus patients, Ebola virus patients, HFMD patients, Malaria virus patients, JN.1 virus patients, H1N1 flu patients, H3N2 flu patients, H7N9 bird flu patients & various flu and virus patients. It can also detect normal human temperatures, it can use this timely and effective manner to prevent spread and infection of flu and virus to people. AWT99P detector can detect and find a fever patient who is caused by any virus or flu.
TECOS AWT99P detector can help your government, organization and apparatus to detect human fevers of infecting Omicron virus, Monkeypox & COVID-19 Virus, JN.1 virus, flu and other viruses to prevent their infections to people.
AWT99P body fever detectors are being widely used in hospitals, churches, factories, customhouses, embassies, amusement places, exhibition sites, banks, prisons, courts, schools, airports, hotels and so on to detect human fevers to prevent spreads and infections of Omicron virus, JN.1 virus, COVID-19 virus, Monkeypox Virus, Delta virus, flu and other various viruses.
TECOS AWT99P walk-through body temperature detector has a high sensitive detection temperature, detects a wide range and fast speed and doesn't interfere with the measured target, its use is safe. Only when people pass through it in the detection body range, this instrument can show immediate human body surface temperatures, the operator can obtain accurate data, if they are suspicious fever patients, it will immediately report to the police apparatus, thus is a timely & effective manner to prevent spread and infection of virus and flu flow. AWT99P detector is a human fever screening detector.
System:
Connect a camera and a computer system:
AWT99P detector is a long-distance surveillance measurement body temperature detector with a camera, has high-precision medical probes and can complete measurement temperatures quickly in 0.3 ~ 0.5 seconds. Its output signal will connect to a computer, this system can achieve remote video surveillance & be on-site not to need staff on duty, when a body temperature exceeds the set temperature, its automatic voice alarm will be given out, its camera can photograph immediately automatically, this system can show and record the temperature automatically, and the human picture and body temperature can be watched and saved in the computer.
Application:
TECOS AWT99P walk-through body temperature detector has a non-contact measurement temperature, high accuracy, fast speed measurement and over-temperature alarm, it is particularly suitable for large flow of people in the public for rapidly detecting human body fever temperatures.
The AWT99P products have been exported to Iraq, Morocco, Vietnam, Malaysia, Nigeria, Spain, Egypt, Kenya, Austria, Thailand, India, Iran, Italy, Brazil, Syria, Libya, Saudi Arabia, South Africa, Turkey, Mexico and so on for local customers' use.
Features:
1. Non-contact detection, safe & reliable, floor design, after the probes scan a human body, it displays detection result, its result is digital show. The red and green lights display its work state to be clear and intuitive, measurement system can automatically open.
2. Many vertical scanning probes are in order to adapt to different height people for the accurate measurement. An automatic voice broadcast system broadcasts its monitoring results. We provide a free English software operation system, optional: a computer, a computer can also be bought by you in your country to install this AWT99P detector's software to finish this system for work.
3. Install more than 13 medical detection body temperature sensors in this system, temperature sensors are made in Germany.
Technical data:
1. Overall exterior gate dimension: 2220 mm (H) x 915 mm (W) x 620 mm (depth). Dimension of gate passageway interior: 2000 mm (H) x 738 mm (W) x 620 mm (depth).
2. Measurement time: 0.3 ~ 0.5 seconds. Relative humidity: 80%. Voltage: 110V, 220V (±10%), 50Hz/60Hz.
3. Temperature resolution: 0.1℃. Measurement body temperature accuracy: ± 0.2 ℃ ~ 0.3 ℃. Its door frame is high-grade appearance.
4. Alarm temperature: 37.5 ℃ ( this temperature can be free to be set, for example: 37 ℃, 37.1 ℃, 37.2 ℃, 37.3 ℃, 37.4 ℃ etc.), the factory setup is 37.5 ℃alert, the body temperature exceeds it for the alarm. Very high medical measurement accuracy. Fever alarm.
Conform to European Medical Device Directive (MDD) 93/42/EEC and EMC Directive 2014/30/EU international safety standards.
Have European CE and EMC international Medical Device standard certificates and USA FCC safety standard certificate. |
