ST889A, ST899B & ST911H hand-held / desktop type explosive and drug / narcotics detector, ST912D intelligent multi-functional explosive and drug / narcotics detector which can detect explosives, drugs, chemical warfare agents, industrial toxic and harmful gases, radioactive substances and other dangerous goods. LD638P / LD633H flammable & explosive liquid detector. As follows:

TSD110A, TSD120B and TSD160A truncation wireless bomb signal devices, they can cut off wireless signals in order to prevent detonating a bomb & explosives and illegal communications, please visit: www.topteches.com/en/html/html_97.html

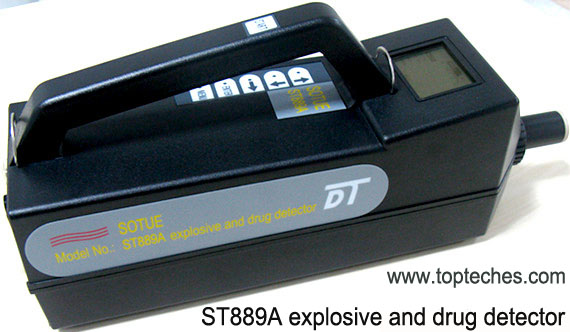

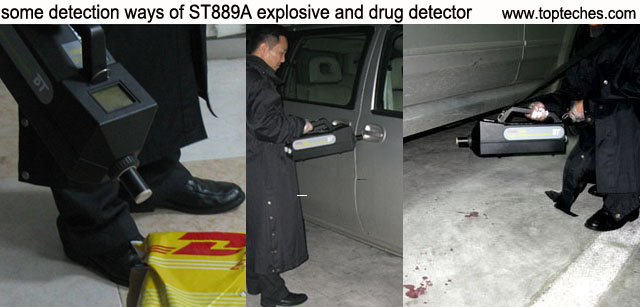

                        SOTUE ST889A high sensitive hand-held explosive and drug detector

Application:
SOTUE ST889A explosive and drug detector is widely used in anti-terrorism & detection narcotics in order to trace,inspect, identify and find explosives and make policemen trace and find drugs. It can obtain the advantages of on-site evidence. It is widely used in customhouse, postal services, airports, stations, border, ports and so on to check and identify suspicious items, and also used in confidential unit, security departments and other public places for the inspection and identification of suspicious items. ST889A detector can detect and identify narcotics, explosives and IED bombs, can also trace and find narcotics, explosives & IED bombs. ST889A detector can trace, detect, identify and find explosives and drugs / narcotics for police, can simultaneously detect Explosives and Narcotics / Drugs. ST889A detector products have already been exported to Iraq, Libya, Nigeria, Spain, Malaysia, Iran, Vietnam, Thailand, India, Italy, Brazil, South Africa, Turkey and Mexico, etc. for local clients' uses.

Detect the following drugs and explosives:
1. Detect Narcotics and Drugs:
Can detect the updated type and common drugs and narcotics, it can detect total 13 kinds of drugs and narcotics in the market. Inquiries and details about detecting more drugs and narcotics, please contact us.

2. Detect Military and commercial explosives:
TNT (TNT, C4), RDX ( Hexogeon ), DNT ( Dinitrotoluene ), TETRYL, HMX, Black powder ( Black gunpowder, Gunpowder ), TATP ( Triaceton triperoxide ), PETN, NITRO ( Nitrate ), AMNO3 ( Ammonium nitrate ), and it can detect complex mixture explosives above.





Functions:
Explosives and narcotics detection modes. It has automatic analysis and proofreading functions, high precision and high sensitivity. Alarm ways: Audible alarm, LCD screen displays the types and names of prohibited explosives & drug substances, visual black bar display alarm positions. It is equipped with a microprocessor. You can choose an alarm mode and can also store data. ST889A detector can trace, detect, identify and find explosives and drugs. It uses a built-in memory for storage, optional:  can be connected to a computer for storage and analysis data. Optional: It has a built-in SD memory card.
It can simultaneously detect Explosives and Narcotics / Drugs.
Several kinds of explosives or drugs / narcotics
 can be simultaneously traced, detected, identified and found, their types and names can be simultaneously shown out.

Technical data.
Analysis explosives time: 6 seconds ( standard ). Analysis drugs / narcotics time: 9 seconds ( standard ). Sensitivity: 10 pg, it is a very and very high sensitivity in the world. ( ATTENTION, sensitivity change unit: 1 g = 1000 mg, 1 mg = 1000 μg, 1 μg = 1000 ng, 1 ng = 1000 pg, ng > pg, 1 ng = 10-9 g, 1 pg = 10-12 g. ng = nanogram, pg = picogram ). ST889A detection substance ways: detection air collection, vapor suction and surface wipe way. Signal mode: LCD show and voice alarm. Power Supply: 12V Ni-MH rechargeable battery, car cigarette lighter and AC 110 ~ 220V (±10%). Weight: 3.45 Kgs. Size: about 450 mm (L) x 121 mm (W) x 200 mm (H).

Technical standards:
1. Conform to EN60950-1:2006+A12:2011+A2:2013 and EN61326-1:2013 product safety international standards.  2. Conform to EN 61000-6-1:2007 product immunity international safety standard.  3. Conform to EN61010-1:2010 and EN55011:2009+A1:2010 international security standards.  4. Conform to EN61000-3-3:2013 and EN61000-3-2:2014 international security standards.
5. Have European CE and EMC international security standard certificates.
6. Have ISO 9001:2015 international quality standard management system certificate.

                                SOTUE ST899B hand-held explosive and drug detector

Introduction:
ST899B portable explosive and drug detector adopts high-resolution ion mobility spectrum technology, has fast detection speed, high accuracy and simple operation, it can accurately detect black powder and all explosives and drugs specified by the International Civil Aviation Organization.

Detect the following explosives and drugs / narcotics:
Detect explosives:
TNT. RDX 1. RDX 2. Taian. Nitroglycerin. Ammonium nitrate. Black powder. 2,4-DNT. Tetrel. Octogen. Picric Acid. Gina. EGDN. C4 Explosive. Semtin. Nitroguanidine. Hexanitrostilbene. DEGDN. PGDN. 3,4-DNT. 3,4-DNT2. 2,6-DNT. TNB. TNR. TNR2. MNT. PYX. DMNB. TATB. HMTD. TATP. 2N-4,6D. 3,5-DNT. Total 33 kinds of explosives. Military, civilian and home-made explosives, it can also detect complex mixture explosives above. New samples can be added into it as required.

Detect drugs and Narcotics:
Can detect the updated type and common drugs and narcotics in the market, now it can detect total 20 kinds of drugs and narcotics in the market, and can add new more drugs and narcotics into it for inspection at any time as required and needed. Inquiries and details about detecting more drugs and narcotics, please contact us.


Feature:
1. Precise detection: In actual work, it is not necessary to aim at the dangerous goods in the package, just wipe the inspected package with test paper to detect whether the dangerous goods are carried.
2. It can realize double detection of explosives and drugs.
3. Accurate identification: it can accurately identify the types of components of dangerous goods, and can report names of dangerous goods to be inspected. The results can be obtained within 3 seconds.

4. Have automatic calibration function and self-cleaning function.
5. With automatic fault diagnosis function, the user can judge whether the instrument can operate normally according to the warning.
6. Real time update: Open database, sample library information can be updated at any time.
7. Full color screen: 2.8-inch TFT color touch screen display.
8. Have real-time data storage, retrieval, export and other functions, the storage capacity is not less than 800,000 pieces of data.

Technical data:
Weight < 3.98 kgs.
Dimension: 469 mm (L) x 168 mm (W) x 199mm (H).
Battery working time > 2 hours, standby time > 12 hours.
Power supply: AC 110V ~ 220V (±10%), 50-60Hz, output 24V.
Working / storage temperature: - 20 ℃~60 ℃.
Operating / storage humidity:< 95%.
Sensitivity: PG level.
Analysis time ≤ 3s.
Startup time < 13min.
False alarm rate ≤ 1%.
Detection rate ≥ 99%.

Function
Open database can be updated at any time.
Sampling method: trace particle adsorption sampling, test paper wiping sampling.
Detection type: it can realize the full detection of drugs and explosives.
Mixture detection: it has the function of principal component detection and mixture component detection and selection.
Alarm mode: with sound, light and character light alarm display (optional alarm).

Technical standards:
1. Conform to EN60950-1:2006+A12:2011+A2:2013 and EN61326-1:2013 product safety international standards.  2. Conform to EN 61000-6-1:2007 product immunity international safety standard.  3. Conform to EN61010-1:2010 and EN55011:2009+A1:2010 international security standards.  4. Conform to EN61000-3-3:2013 and EN61000-3-2:2014 international security standards.
5. Have European CE and EMC international security standard certificates.
6. Have ISO 9001:2015 international quality standard management system certificate.

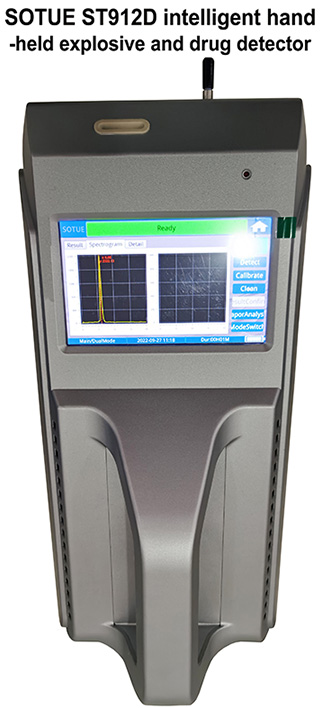

           SOTUE ST912D intelligent multi-functional hand-held explosive and drug detector

Introduction
ST912D intelligent type explosive and drug detector is an intelligent all-in-one dangerous goods detector that integrates explosive detection, drug detection, industrial toxic and harmful gas monitoring, chemical warfare agent detection and radioactive substance detection. It adopts ion mobility spectrum technology and integrates ray detection technology, so it has fast detection speed, high sensitivity and simple operation. It can detect the nowaday dangerous substances specified by the International Civil Aviation Organization.

Feature:
1. Detect explosives, drugs, chemical warfare agents, industrial toxic & harmful gases, radioactive substances and other dangerous goods
2. Intelligent analysis: the detection mode and sampling mode can be switched with one key according to the different targets
3. Precise detection: can accurately identify types of components of dangerous goods, and can report names of dangerous goods to be inspected.
4. Detection: In actual work, it is not necessary to aim at dangerous goods in the package, just wipe the package to be inspected with a test paper or use the air suction probe at the package surface to detect whether dangerous goods are carried, it is easy to operate. Automatic calibration without manual intervention.

5. Alarm method:
When it detects and find a suspicious object, the name of the prohibited substance will be displayed on its screen. It has automatic analysis and proofreading functions, high accuracy, and high sensitivity.
Alarm method: Audible alarm and at the same time its display screen is displaying the name of the prohibited substance.
6. Its operation is very simple. You can use it for your work. Standard language: English, Chinese, optional use languages: Arabic.
7. Detection substance ways: detection air collection, vapor suction and surface wipe way. Can detect residual solid and liquid samples.

Detect the following dangerous substances:
1. Detect drugs and Narcotics as follows:
Cocaine. Heroin. Marijuana. Methamphetamine. K powder. Morphine. Dolantine. MDA. Papaverine. Methcathinone. MDMA. Ephedrine. MDEA. Synthetic ephedrine. Shake foot pills. Triazolam. Pentachlorophenol. Benzidine. Fentanyl. Diazepam. MDPV. Phencyclohexylpiperidine. 4-methyl-methyl-cazecone. Total 23 kinds of drugs. New samples can be added into it at any time as required.

Now it can detect total 23 kinds of drugs and narcotics in the market and can detect the updated type and common drugs and narcotics in the market. It can add new more drugs and narcotics into it for inspection at any time as required and needed. Inquiries and details about detecting more drugs and narcotics, please contact us.

2. Detect explosives as follows:
TNT. RDX. TAIAN. Nitroglycerin. Ammonium nitrate. Black powder. 2,4-D. Tertrel. Octogen. Glycyrrhizic acid. Gina. C4 explosives. Semtin. Nitroguanidine. Hexanitrostilbene. EGDN. DEGDN. PGDN. 3,4-D. 2,6-D. 3,5-D. 2,3-D. 2,5-D. Trinitrobenzene. TNR. MNT. DMNB. PYX. TATB. 2-amino-4,6-D. 1,2-dinitroglycerin. 1,3-dinitroglycerin. HNDP. TATP. HMTD. Total 35 kinds of explosives, and it can also detect complex mixture explosives above. New samples can be added into it at any time as required.

3. Detect chemical warfare agents as follows:
Mustard gas. Sarin. Vieques. Soman. Phosgene. Louis reagent. Hydrocyanic acid. Cyanogen chloride. Taban. Nitrogen mustard. Total 10 kinds of chemical warfare agents, and it can add new samples into it at any time as required.

4. Detect industrial toxic gas as follows:
Sulfur dioxide. Hydrogen sulfide. Nitrogen dioxide. Nitric oxide. Acetone. Ammonia. Iodine. Ammonia. Ethanol. Ethylene oxide. DMMP. MTBE. Formaldehyde. Benzene. Hydrogen cyanide. Chlorine. SF6. CS2. Acrolein. HF. Acrylonitrile. Total 21 kinds of industrial toxic gases, and it can add new samples into it at any time as required.

5. Detect ray type: X、γ Radiation.




Technical data:
Detection limit: PG level (explosives and drugs), PPM level (toxic gas).
Dimention: 290 mm (L) x 170 mm (W) x 135 mm (H).
Weight: 3.22kgs.
Battery: lithium battery pack 14.8V / 6700 mAh.
Working environment: - 20 ℃ ~ 60 ℃. Relative humidity: 99%.
Storage temperature: - 25 ℃ ~ 70 ℃.
Battery work time: more than 3 hours.
Machine startup time: ≤ 10 minutes.
Substance detection time: ≤ 8 seconds.
Inhalation analysis detection: ≤ 5 seconds.

Power Supply: AC 110V ~ 220V (±10%).

Function:
1. It has automatic cleaning function. Fully automatic collection of all data and its has the ability which can export results.
With automatic fault diagnosis function, the user can judge whether the instrument can operate normally according to the warning.
Autoprint: With built-in printer, it can print test results and historical records in real time
2. Update: The database and software can be upgraded and backed up at any time through a variety of methods (such as USB, Ethernet, etc.)
3. Have real-time data storage, retrieval, export and other functions, the storage capacity is not less than 10 million pieces of data. Support USB backup and expandable 64G SD card.
4. Real time positioning: have GPS and Beidou positioning functions, it can position the instrument in real time
5. Optional remote control: It can upload data to the background system for centralized management through a variety of wired and wireless ways to achieve remote status monitoring, result viewing, fault diagnosis, instrument control and other functions
6. Optional multiple communication: It has wired communication modes such as Ethernet interface, USB interface, RS232 interface, and wireless communication modes such as Wifi, Bluetooth, GPRS and 4G.
7. Powerful material warehouse: the material warehouse contains nearly 100 kinds of common explosives, drugs and toxic gases, and supports real-time updating and expansion according to customer's requirements.

Technical standards:
1. Conform to EN60950-1:2006+A12:2011+A2:2013 and EN61326-1:2013 product safety international standards.  2. Conform to EN 61000-6-1:2007 product immunity international safety standard.  3. Conform to EN61010-1:2010 and EN55011:2009+A1:2010 international security standards.  4. Conform to EN61000-3-3:2013 and EN61000-3-2:2014 international security standards.
5. Have European CE and EMC international security standard certificates.
6. Have ISO 9001:2015 international quality standard management system certificate.

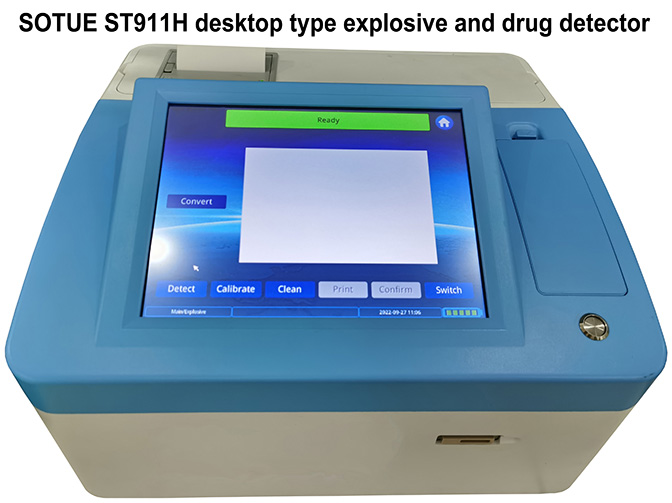

                             SOTUE ST911H desktop type explosive and drug detector

Introduction
ST911H desktop type trace explosive and drug detector adopts vacuum ultraviolet lamp ionization technology, has fast detection speed, high accuracy and simple operation, it can accurately detect black powder and explosives and drugs specified by the International Civil Aviation Organization.

Detect the following explosives and drugs / narcotics:
Detect explosives:
TNT. RDX. TAIAN. Nitroglycerin. Ammonium nitrate. Black powder. 2,4-D. Tertrel. Octogen. Glycyrrhizic acid. Gina. C4 explosives. Semtin. Nitroguanidine. Hexanitrostilbene. EGDN. DEGDN. PGDN. 3,4-D. 2,6-D. 3,5-D. 2,3-D. 2,5-D. Trinitrobenzene. TNR. MNT. DMNB. PYX. TATB. 2-amino-4,6-D. 1,2-dinitroglycerin. 1,3-dinitroglycerin. HNDP. TATP. HMTD. Total 35 kinds of explosives, it can detect military civilian and local explosives and can also detect complex mixture explosives above, new samples can be added into it as required. More inquiries and details, please contact us.

Detect drugs and Narcotics:
Can detect the updated type and common drugs and narcotics in the market, now it can detect total 23 kinds of drugs and narcotics in the market. It can add new drugs and narcotics into it for inspection at any time as required and needed. Inquiries and details about detecting more drugs and narcotics, please contact us.




Feature:
1. It can realize dual mode detection of explosives and drugs.
2. Data printing: The built-in printer can print the test results at any time.
3. Accurate identification: can accurately identify types of components of dangerous goods, and can report names of dangerous goods to be inspected.
4. Micro trace detection: can detect dangerous goods such as fireworks, civil explosives, etc.
5. Results will be obtained within 3 seconds of detection.
6. With automatic calibration function.
7. Automatic cleaning: It can clean and purify the interior of the instrument system, and can quickly and automatically clean after each test.
8. With automatic fault diagnosis function, the user can judge whether the instrument can operate normally according to the warning.
9. Open database, sample library information can be upgraded at any time.
10. It has real-time data storage, retrieval, export and other functions, its storage capacity is not less than 100,000 pieces of data.
11. Optional network connection: support wired network (LAN), wireless network (WIFI), Bluetooth connection, USB interface and functions.

Technical data:
Full color screen: 10.4-inch TFT color touch screen display.
Weight: about 14.9Kgs.
Dimension: 381 mm (W) x 399 mm (L) x 249 mm (H).
Power supply: AC 110V ~ 220V (±10%), 50-60Hz.
Maximum power consumption: less than 300 W.
Working / storage temperature: - 10 ℃ ~ 55 ℃.
Operating / storage humidity: < 95%.
Sensitivity: PG level.
Analysis time: ≤ 6s.
Startup time: <15 min.
False alarm rate: ≤ 1%.
Detection rate: ≥ 99%.

Function:
Open database: can be updated at any time.
Sampling method: trace particle adsorption sampling, test paper wiping sampling.
Detection type: it can realize the full detection of drugs and explosives
With real-time data storage function, the detection data can be converted into pictures or exported in TXT format.
Optional alarm mode: audible and visual light alarm.

Technical standards:
1. Conform to EN60950-1:2006+A12:2011+A2:2013 and EN61326-1:2013 product safety international standards.  2. Conform to EN 61000-6-1:2007 product immunity international safety standard.  3. Conform to EN61010-1:2010 and EN55011:2009+A1:2010 international security standards.  4. Conform to EN61000-3-3:2013 and EN61000-3-2:2014 international security standards.
5. Have European CE and EMC international security standard certificates.
6. Have ISO 9001:2015 international quality standard management system certificate.

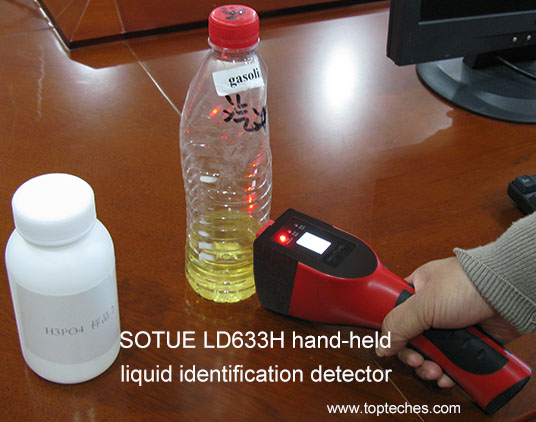

       LD633H hand-held dangerous liquid identification detector (flammable and explosive liquid detector)

SOTUE model No. LD633H liquid identification detector is a security detection instrument which detects flammable and explosive liquid. LD633H liquid identification detector can quickly identify the flammable and explosive liquid in the condition of not touching liquid, LD633H products have been exported to Thailand, India, Italy, Russia, Indonesia, France, Cuba, Brazil, Iraq, Nigeria, Turkey, Spain, Malaysia, Vietnam, South Africa and Mexico for the local customers to use. We have provided OEM products for some of our customers in Europe, American and Japan for many years. It is widely used in airports, stations, casinos, mosques, prisons, courts, gymnasium, Churches, public security, Embassy, checkpoints, customs,  postal parcel inspection and other security departments.

Feature:
Composition: a detector and a charger, small volume, quick analysis, operation is simple.
Alarm ways: voice alarm: a danger signal, LED Alarm: a danger signal.
HMI: provide English version or Chinese version interface, luminous LED display.

LD633H liquid identification detector can detect the following flammable and explosive dangerous liquid kinds:
Ethanol, Isopropanol, Diethyl ether, carbon disulfide, methanol, nitromethane, gasoline, kerosene, diesel oil, paint, isopropyl ether, petroleum ether, acetonitrile, ethylene glycol, propylene oxide, nitrobenzene, n-heptane, turpentine, acetone, benzene, four benzene, xylene, four ethyl chloride, two n-hexane, chloroform, paint thinner (nitro thinner solvents), four chlorine furan, styrene, acetaldehyde, tert butyl alcohol, cyclohexanone, cyclopentane, two triethylamine, n-pentane, n-octane, methyl acrylate, methyl tert butyl ether, n-propyl alcohol, cyclohexane, 1-4-two oxygen six ring, dipentene, pyrrole alkyl and so on more than 40 kinds of inflammable and explosive dangerous liquid.

Technical data:
Dimensions: 215 mm (L) x 51 mm (W) x 80 mm (H). Weight: 199 grams including battery.
Start-up time: about one second. Detection test and analysis time: about one second.
Detecting container size: not less than 5.45 cm x 1.48 cm, the minimum capacity is 50ml.
Data storage capacity: not less than 10000 times detection, provide the detection liquid result storage and retrieval functions, and can pass through the USB port to export the data.
Operating temperature range: -10℃ - +55℃。Storage temperature: -40C° ~ +60C°。Humidity: 5% to 95% humidity.

Technical standards:
1. Conform to EN60950-1:2006+A12:2011+A2:2013 product safety international standards.  2. Conform to EN 61000-6-1:2007 product immunity international safety standard.  3. Conform to EN61000-3-3:2013 and EN61000-3-2:2014 international security standards.
4. Have European CE and EMC international security standard certificates.
5. Have ISO 9001:2015 international quality standard management system certificate.

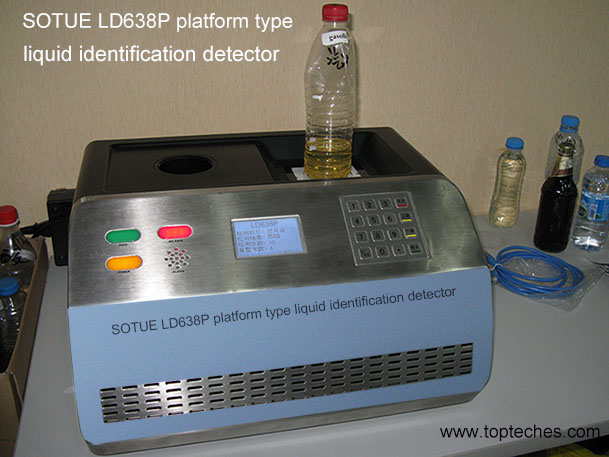

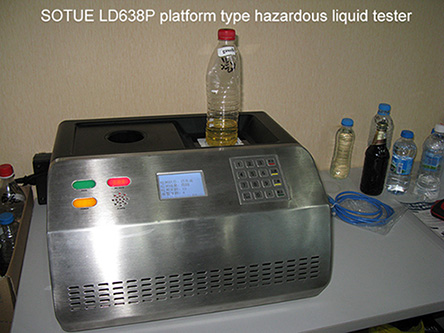

    LD638P platform type dangerous liquid identification detector (flammable and explosive liquid detector)

Application:
SOTUE model No. LD638P liquid identification detector is a security detection instrument which detects flammable and explosive liquid, can quickly identify the flammable and explosive liquid in the condition of not touching liquid. It is widely used in gymnasium, airports, stations, embassy, checkpoints, casinos, courts, Churches, mosques, prisons, public security, customs, postal parcel inspection and other security departments.
We have provided OEM products for some customers in Europe, USA and Japan for many years.

LD638P detector can detect the following dangerous liquid kinds: gasoline, kerosene, diesel oil, hydrochloric acid, xylene, two chlorine ethane, isopropyl alcohol, carbon disulfide, methanol, nitromethane, sulfuric acid, nitric acid, ethyl ether, isopropyl ether, petroleum ether, acetaldehyde, glycol, propylene oxide, n-heptane, pine fragrance, acetone, benzene, toluene, Trichloromethane, nitrobenzene, Hexane, etc., it can detect various kinds of flammable, explosive and corrosive liquid in sealed containers.

Feature:
1. Rapid detection liquid time: about 0.5 ~ 1 second, packed by a non-metal bottle; detection liquid time: about 7 seconds, packed by a metal bottle. Start-up time: about 2 seconds. Automatic checking and recovery function, automatic authentication function.
2. Alarm reset: manual or automatic reset. Detection test results, dangerous liquid alarm: an indicator light is red and a long buzzer sound accompanies; safe liquid show: an indicator light is green and a short buzzer sound accompanies.
3. Can detect the bottom of the container, detection way of the bottle bottom. Can automatically calculate the number of detected objects. English interface show with a light source, adjust equipment parameters on the keyboard.
4. Storage and retrieval functions, can use the standard network interface or USB interface to export the data, through the computer software to read and analyze. Provide English version or Chinese version interface

Technical data:
Dimension: 461 mm (L) X 366 mm (W) X 259 mm (H). Weight: about 13.6Kgs. Power supply: 220V (+ 10%), 50/60Hz.
Detection liquid bottle temperature: 5℃ ~ 35℃. Storage temperature: -40℃ to +60℃. Storage capacity: 10000 times detection.
Detected container bottom size: 30 ~ 85 mm diameter. Detected liquid capacity: ≥ 100 ml.

Technical standards:
1. Conform to EN60950-1:2006+A12:2011+A2:2013 product safety international standards.  2. Conform to EN 61000-6-1:2007 product immunity international safety standard.  3. Conform to EN61000-3-3:2013 and EN61000-3-2:2014 international security standards.
4. Have European CE and EMC international security standard certificates.
5. Have ISO 9001:2015 international quality standard management system certificate.
